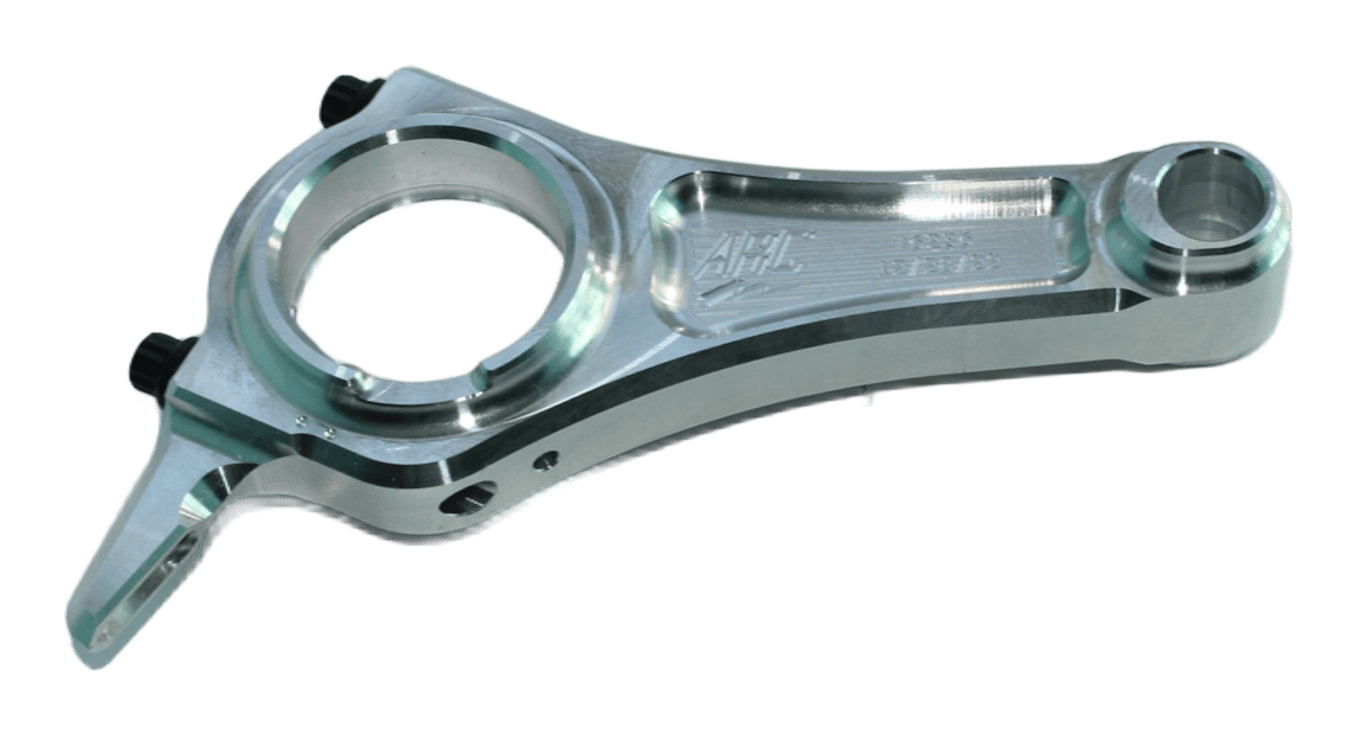

6236 ARC Billet Rod, HF Predator 3.595" X 1.191" X .490" Only works with Wiseco Piston

The New ARC "Drop In" long rod for the Predator Hemi and Non Hemi 212cc engines does not require cutting down the top of the 11132P 2 ring Wiseco piston, or can be used with the new 3 ring Wiseco pistons. This rod measures 3.595" center to center for a 1.188" crank pin with .490" wrist pin and is designed to be used with aftermarket high-performance pistons.* Bearings and custom designed high tensile strength ARP bolts are included. All of our rods are CNC machined from aircraft grade domestic 7075 T-651 aluminum. Our OHV rods are designed to utilize the higher compression ratios and high RPMs of racing OHV engines. Key Features Include: Oil groove in the crank bore that is fed through a channel in the integrated forced oil dipper arm. Oil groove in the wrist pin bore that provides a reservoir of lubricant to the wrist pin as well as reinforced wrist pin bosses on the rod . Sold complete with bearings and bolts.

Rod bolt torque: 170 Inch/lbs lubricated

***Will Not fit the Honda GX200, Clone 196cc, HF Predator Ghost 212cc and Predator 224cc cranks***
