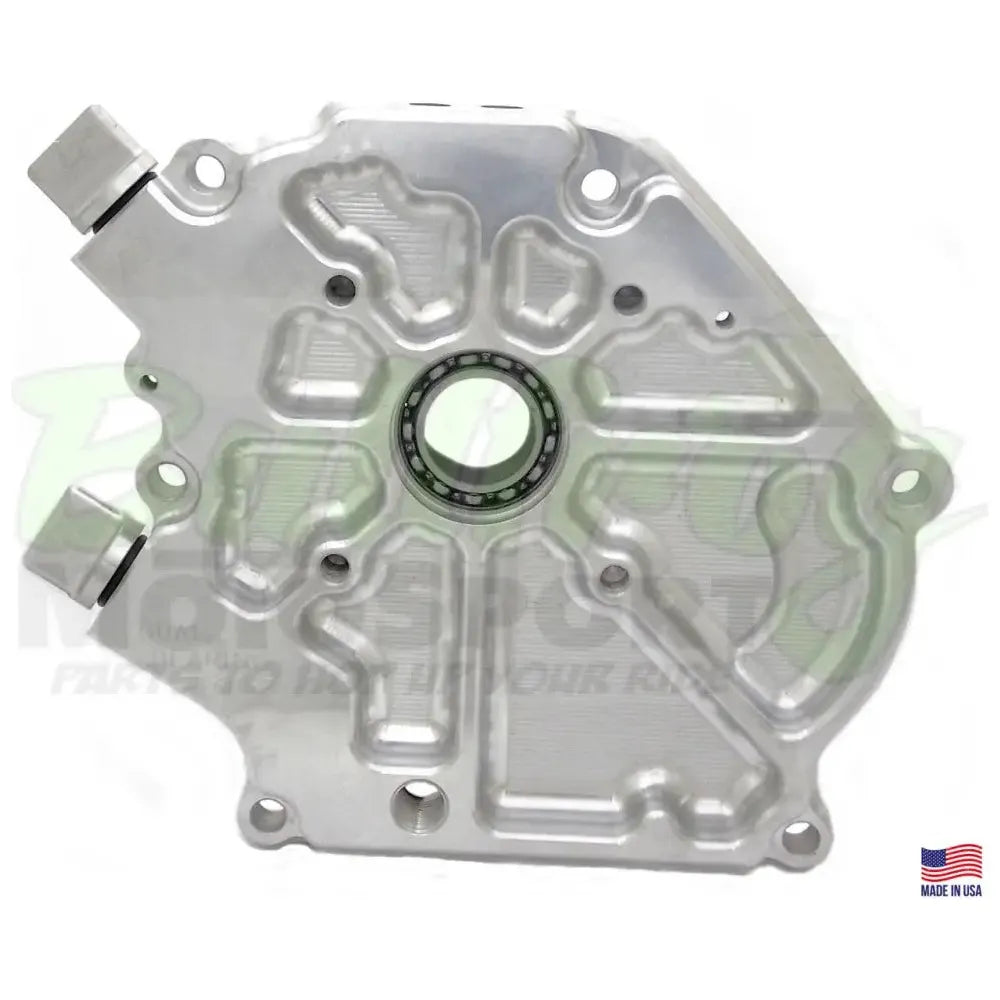

ARC Racing Billet Side Cover for Non-Hemi Predator Engine
Fits only the Gen1 and Gen3 NON HEMI Harbor Freight Predator. The ARC 6058 sidecover features side by side dual ball bearings that support the crank and gives it another fulcrum point to help eliminate any crankshaft flexing. It has an integral o-ring along the perimeter in it's machined groove that guarantees a good seal. 4 pin receptacles mate with 4 dowels to increase mating shear strength. Bronze bushing(with ARC's advanced oil system) support for camshaft main increases strength and minimizes potential for wear. It has 2 venting holes at the top with 1/8" NPT Plugs. It also has 2 oil fill ports with billet ARC aluminum hand tighten plugs. Another useful feature is the threaded holes over the side dowel -pins so that small bolts (included) can be used to push the side cover for easy removal. Not compatible with electric start engines. Chain guard mounting hole thread size M8X1.25mm.
* Includes: Bearings, Seal, Gasket, O-Ring, Plugs and caps and installation hardware.
***Bolt torque is 185-200 inch/lbs***
***use 14oz oil in most applications***
***Will come with 2 solid dowels to use in the top and bottom dowel receptacles. Must use the 2 OEM dowels in the left and right dowel receptacles***
