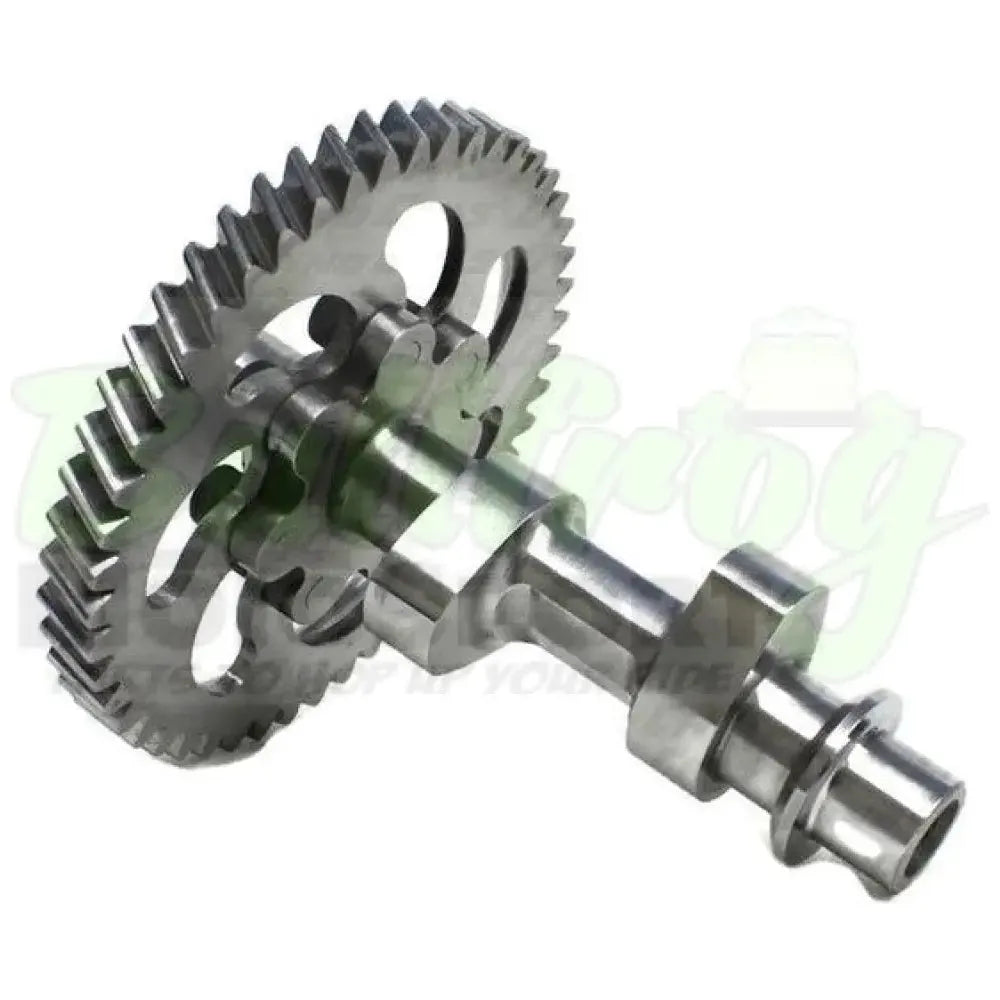

Dyno Cams Camshaft 356 Grind, Tool Steel Billet, 196cc, Predator Hemi
The DynoCams 356 is a high lift modified grind that is very capable of extreme RPMs. This cam has very aggressive ramps and requires an upgraded spring package, billet rod, and billet flywheel. For use with Tillotson or larger carb.
Tool Steel Billet cores are the best choice in high RPM applications.
The two piece design of the Tool Steel Billet core allows you to advance or retard the cam to meet your application needs.
Engine: 196cc OHV Clone, 212cc Hemi Predator
Recommended Class: Modified
Target (MAX) RPM: 8500-9000
Spring Pressure (In / Ex): 36 lbs
Valve Lash (In/Ex): .003"
Ignition Timing: 36 Deg BTDC
Open: 51.6 BTDC 94.0 BBDC
Close: 93.5 ABDC 54.8 ATDC
Lift: .3555" .3555"
C/L: 108.0 ATDC 108.0 BTDC
DUR @ 50: 254.3 Deg 254.5 Deg
